The UV Pro series of our company offers guaranteed disinfection by viruses, protozoa, germs, bacteria, legionella and others.
In collaboration with the world's largest lamp manufacturer, PHILIPS offers 100% pure water, from 21 lpm to 380 lpm.
UV Veluda systems are widely used for water disinfection in residential water supply systems, swimming pools, spa, thalassotherapy and wellness centers, hotels, hospitals, schools, laboratories, water vending machines, municipal water treatment systems and aquariums.

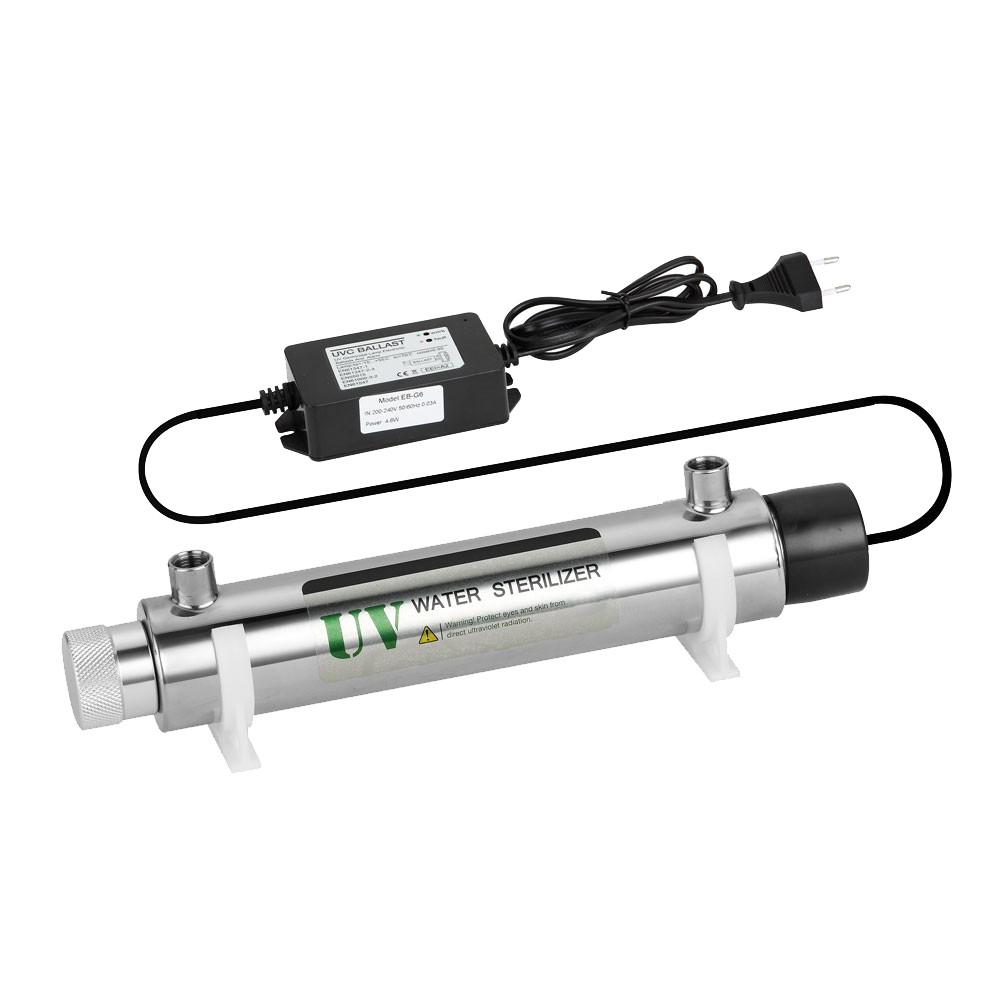

The UV-PRO 2-22 lpm lamp is made of stainless steel 304 s.s. and the power supply provides constant current for maximum lamp output. It also has an audio-visual alarm, an indicator of the proper or non-functioning of the lamp, a warm-up startup and lamp output and lamp protection. In addition, you can have a total daylight indicator on order, if required.
2 years warranty for the device and 12 months for the lamp.

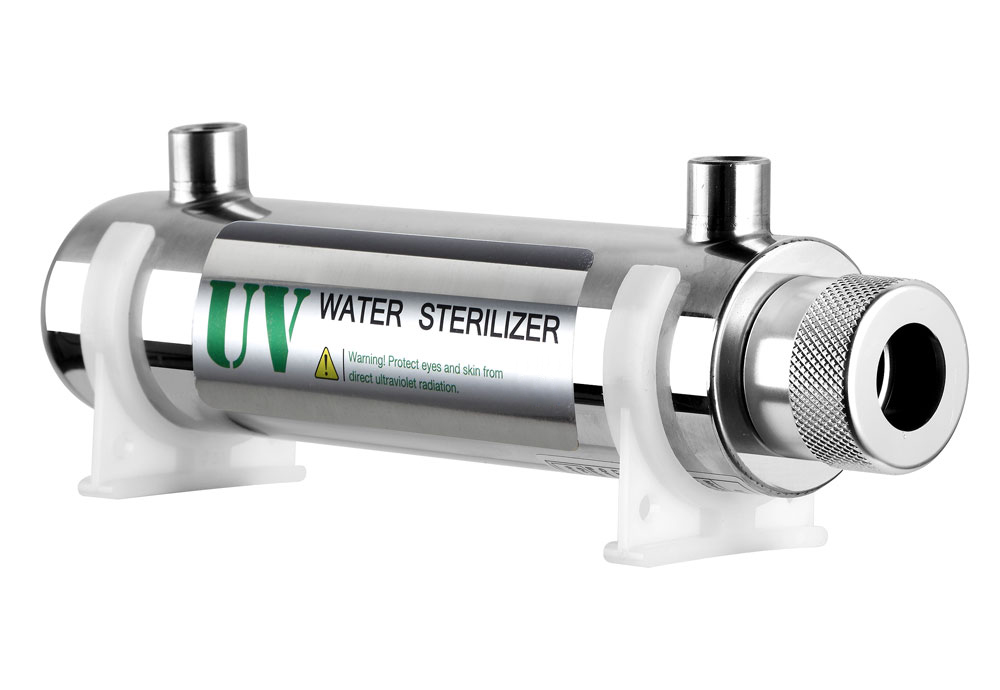

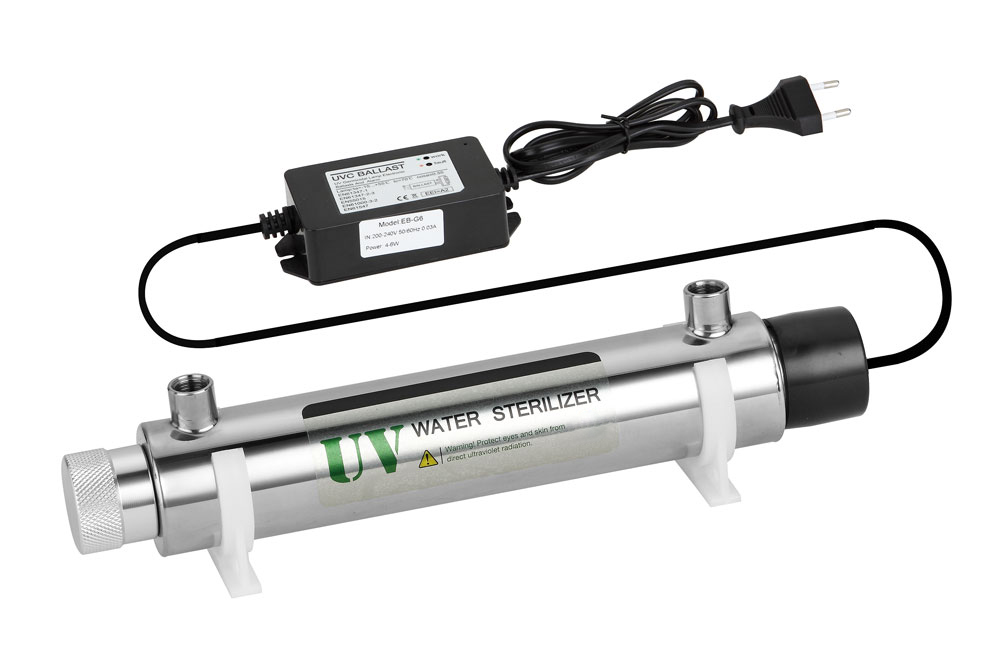

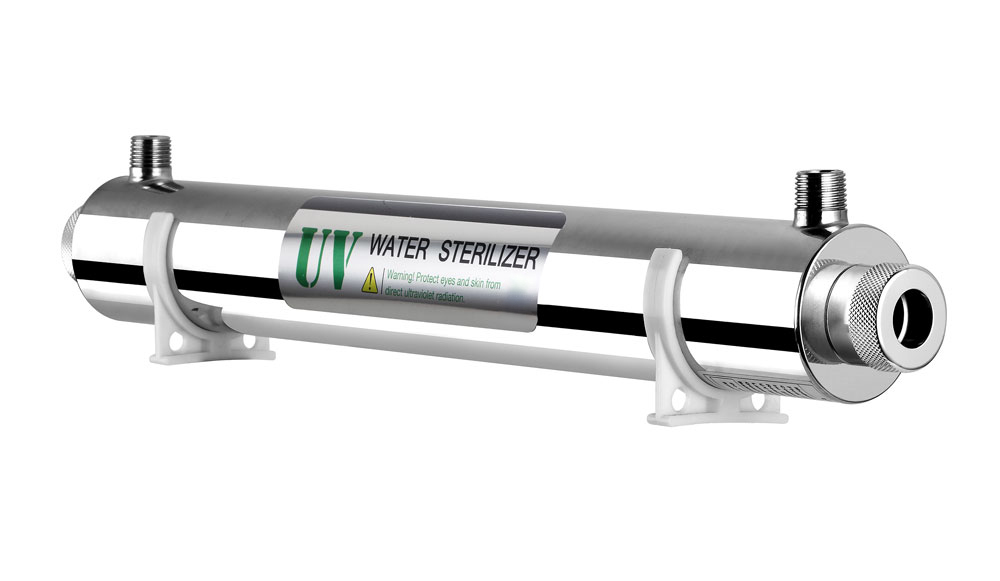

|Model No.||UV - 006||UV - 011||UV - 016||UV - 025|
|Water Flow||2 LPM||3.8 LPM||7.6 LPM||22.7 LPM|
|Dimensions||Length||255 mm||305 mm||370 mm||508 mm|
|Diameter||50.8mm||50.8 mm||63.5 mm||63.5 mm|
|Ballast||98 mm (L) * 58 mm (W) * 32 mm (H)|
|Packing Contents||1 Piece|
|Inlet / Outlet Port Size||1/4 “ female||1/4 “ female||1/2 “ male||1/2 “ male|
|Electrical||Volts||100 - 240 V ( 50 - 60 Hz)|
|Power Consuption||8 W||15 W||21 W||33 W|
|Lamp Power||6 W||11 W||16 W||25 W|
|Ambient Temprature||2 - 40° C|
|Max Operating Pressure||10 Bar (145 PSI)|
|Audible Lamp Failure||Yes|
|Visual "Power on"||Yes|
|Reator Chamber Material||SS304|
|Lamp Type||Philips 2 PIN|

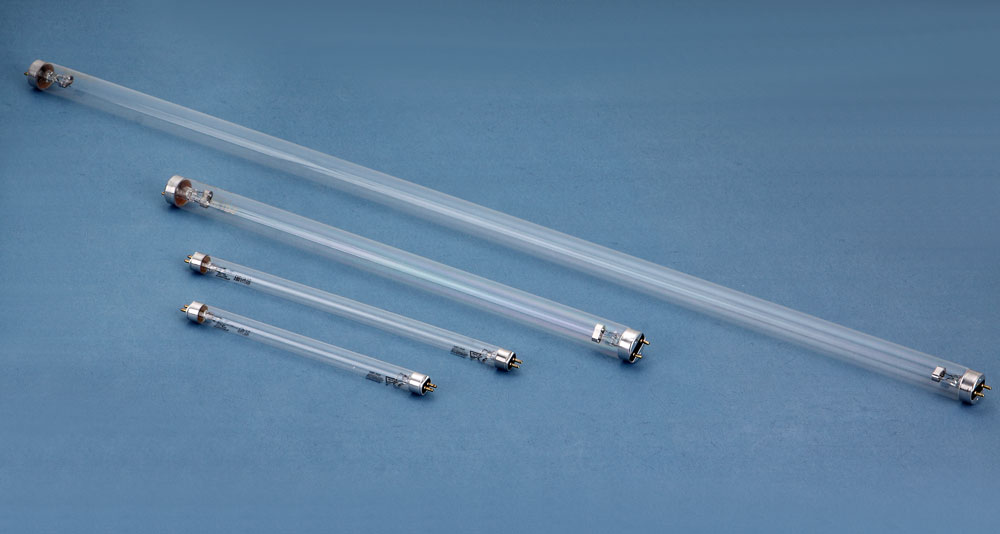

|LAMP||LAMP - 006 6W 2PIN 0,16A (D16*L212,1mm)||VUV - 011 11W 2PIN 0,41A (D16*L212,1mm)||VUV - 016 16W 2PIN 0,39A (D16*L288,3mm)||VUV - 025 25W 2PIN 0,61A (D28*L437,4mm)|

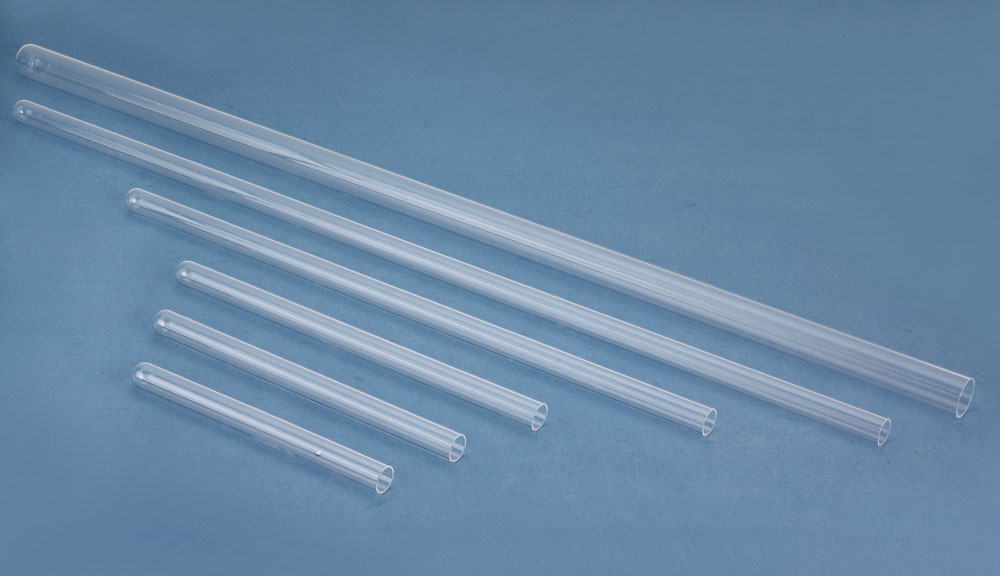

|QUARTZ||QUARTZ 6W (D23*L245mm)||QUARTZ 11W (D23*L245mm)||QUARTZ 16W (D23*L360mm)||QUARTZ 25W (D34*L498mm)|

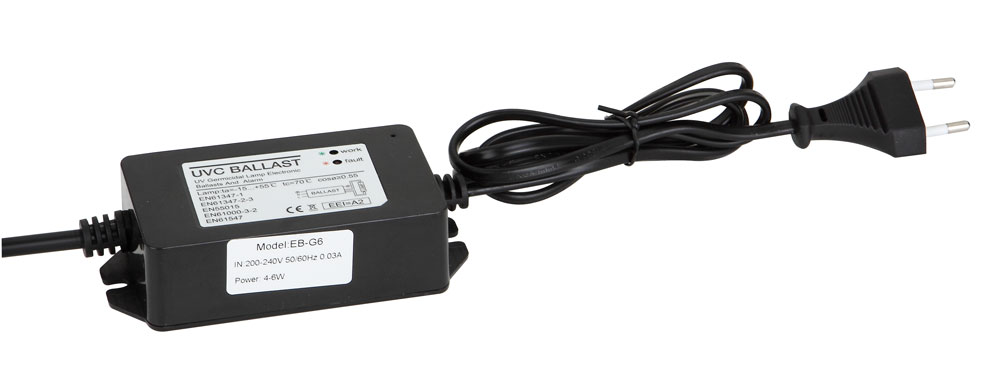

|BALLAST||BALLAST 6W||BALLAST 11W||BALLAST 16W||BALLAST 25W|
