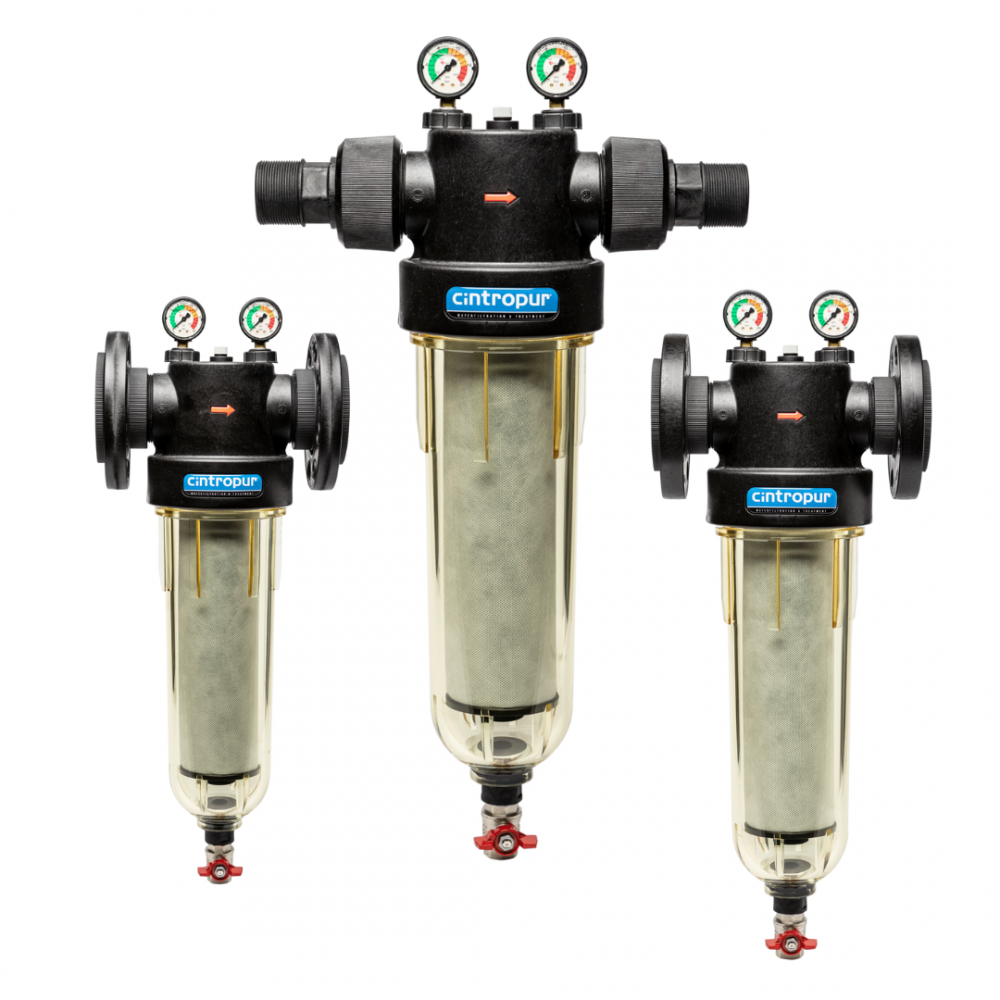

Ιndustrial main water supply filters

They are manufactured entirely from 100% quality synthetic material, which is ideal for use in drinking water and food products.

Water passes through the filter following a centrifugal motion, causing larger particles to go to the bottom of the shell, while smaller particles, sludge, etc. are effectively filtered by the high quality bag filter in the device.

Specifications

  • High flow
  • Small pressure drop
  • Easy washing
  • Economical and ecological replacement bag filter
  • Pressure gauge and mounting bracket optional
Model500650800
Working Flow
20m³ / hr
25m³ / hr
30m³ / hr
Inlet - Outlet
2''
2,5''3''
Pressure
10 bar10 bar10 bar
Max Pressure16 bar16 bar16 bar
Max Temperature
50°C50°C50°C
Pore Size
25 micron25 micron25 micron
Made in
Belgium
Belgium
Belgium
